Caroma Integra Back Inlet Urinal

Caroma Integra Back Inlet Urinal

by Caroma
SKU: 665102W
Save 25% Save 25%
$3,339.00
$3,339.00 - $3,339.00
$3,339.00
$2,499.00
$2,499.00 - $2,499.00
$2,499.00
Product Description

A wall-hung box rim urinal of modern design with a concealed trap and bracketing to provide an easy to clean outer shroud for low cost maintenance. A unique feature of this urinal is the integral air break system for direct mains pressure connection. The box rim flush provides for the wash down of the entire inside area of the bowl on each flush. The grate is vitreous china and factory fitted.

Product Features
  • Wall hung urinal
  • Mains pressure supply
  • Back inlet only
  • Vitreous china, white only
  • Integra Urinal Bracket code 687130 required for installation
  • Cistern & Buttons sold separately
Product Specifications
  • Product Type: Urinals
  • Range: Integra
  • Colour: White
  • Item material: Vitreous China
  • Capacity to overflow: Yes
  • Overflow: No
  • WELS with flow rate flush volume 1: WELS 3 Star Rated, (1.8L per flush per stall)
  • Shape: Square
  • Number of tap holes: One Tap Hole
  • Capacity size: 4.8 L
  • Clean flush: No

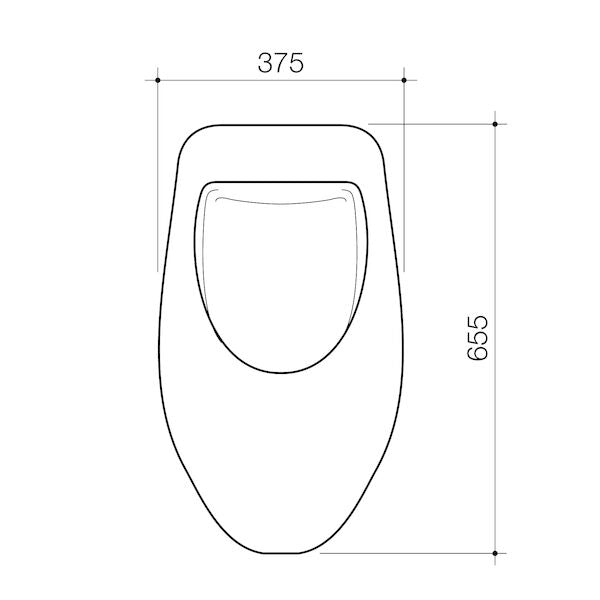

  • Pan height: 655 mm
  • Pan projection size: 385 mm
  • Inlet type: Back Entry
  • Trap type: P Trap
  • AS1428.1 Accessible: Yes
  • AS1428.1 Ambulant: No
  • Independent Living Compliant: Yes
